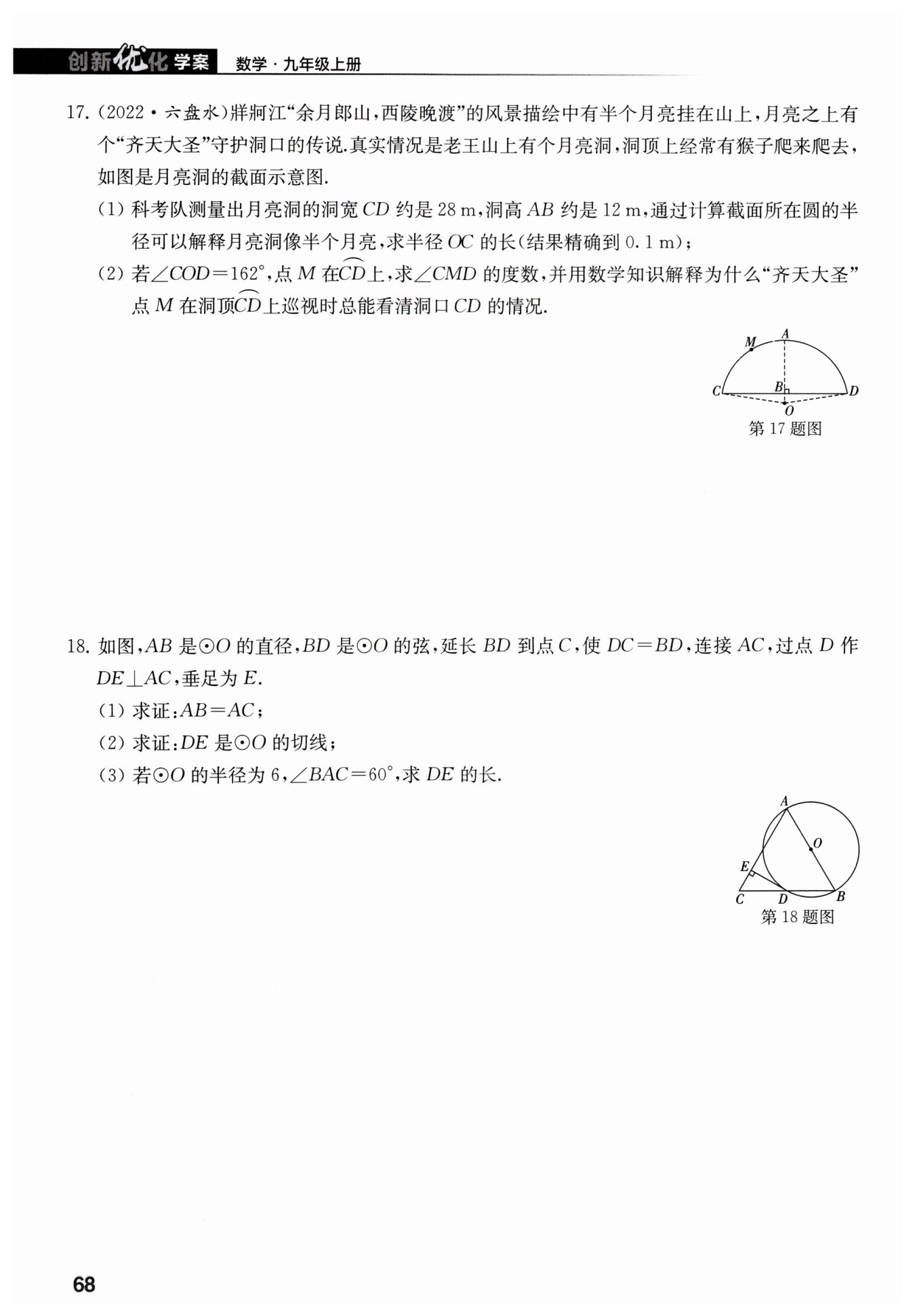

$解:(1)设OA=OC=R m,$
$ ∵OA⊥CD,∴CB=BD=\frac {1}{2}CD=14m,$
$ 在Rt△COB中,OC^2=OB^2+CB^2,$
$ ∴R^2=14^2+(R-12)^2,$
$ ∴R=\frac {85}{6},$
$ ∴OC=\frac {85}{6}≈14.2m.$
$ (2)补全⊙O,在CD的下方取一点N,连接CN,DN,CM,DM,$
$ ∵∠N=\frac {1}{2}∠COD=81°,$
$ ∵∠CMD+∠N=180°,∴∠CMD=99°.$
$ ∵∠CMD=99°不变,是定值,$
$ ∴“齐天大圣”点M在洞顶\widehat{CD}上巡视时总能看见洞口CD的情况.$

$解:(1) 如图, 连接 A D .$
$\because A B 是 \odot O 的直径,\therefore \angle A D B=90^{\circ}.$
$\therefore A D \perp B C.$
$又 \because D C=B D,$
$\therefore A B=A C \quad$
$(2) 如图, 连接 O D .\because D E \perp A C,$
$\therefore \angle C E D=90^{\circ} .\because O A=O B, D C=B D,$
$\therefore O D 是 \triangle A B C 的中位线.$
$\therefore O D / / A C.\therefore \angle O D E=\angle C E D=90^{\circ}\therefore D E \perp O D.$
$又 \because O D 是 \odot O 的半径,$
$\therefore D E 是 \odot O 的 切线$
$(3) \because A B=A C, \angle B A C=60^{\circ},$
$\therefore \triangle A B C 是等边三角形.\therefore B C=A B.$
$\because \odot O 的半径为6\therefore A B=B C=12\ $
$.\therefore C D=\frac {1}{2}\ \mathrm {B} C=6 .$
$\because \angle C=60^{\circ}, D E \perp A C,$
$\therefore \angle C D E=30^{\circ} .$
$\therefore C E=\frac {1}{2}\ \mathrm {C} D=3 .$
$\therefore D E=\sqrt{C D^2-C E^2}=3 \sqrt{3}$
